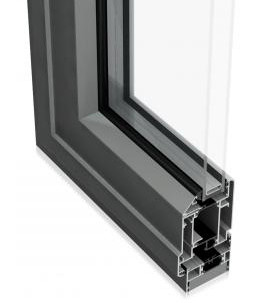

58BD Door

Suitable for both new build and refurbishment projects, the 58BD is ideal for light and medium-duty use and is available in a wide range of styles and formats. Designed for optimal security and flexibility, every door in the range is available in single and double configurations.

Certified under Secured By Design and fully PAS 24 tested, the system includes glazing options of 24mm–40mm with two frame depths available: 58mm or 70mm. The 58BD is available in single or dual colour options, with a choice of anodised finishes also available.

Design features:
  • Certified under the Secured By Design scheme
  • Tested to PAS 24
  • Multi-point locking mechanism
  • Designed to incorporate standard and security hardware using the same prep detail
  • Cloaking feature conceals lock and prevents any access to locking points
  • Suites with window profile to give ultimate design flexibility
  • Slim profile design
Options:
  • Glazing 24mm–40mm
  • Available in two frame depths, 58mm or 70mm, to accommodate varying types of applications
  • Available in single or dual colour polyester powder coating, texture and anodised finishes
  • Available for new build or refurbishment projects
  • Available in single or double door configuration
  • Available in open-in and open-out options
Single Open-In Single Open-Out Double Open-In Double Open-Out
PERFORMANCE AND ACCREDITATIONS
U-Value (Double Glazing) (Ug = 1.0 W/m²K) 1.7 W/m²K 1.7 W/m²K 1.7 W/m²K 1.7 W/m²K
U-Value (Triple Glazing) (Ug = 0.7 W/m²K) 1.4 W/m²K 1.4 W/m²K 1.5 W/m²K 1.5 W/m²K
Air Permeability Class 4 (600 Pa) Class 4 (600 Pa) Class 2 (300 Pa) Class 2 (300 Pa)
Water Tightness Class 3a (100 Pa) Class 7a (300 Pa) Class 7a (300 Pa) Class 9a (600 Pa)
Wind Resistance A3 (1200 Pa) AE2400 (2400 Pa) AE2400 (2400 Pa) AE2400 (2400 Pa)
Building Regulations Part L Compliant
Building Regulations Part M Compliant
Security PAS 24 & SBD PAS 24 & SBD PAS 24 & SBD PAS 24 & SBD
Durability EN1191 Category 50,000 Cycles 50,000 Cycles 50,000 Cycles 50,000 Cycles
3rd Party Certification Q-Mark
SYSTEM
Depth 58mm - 70mm 58mm - 70mm 58mm - 70mm 58mm - 70mm
SIZE AND WEIGHT LIMITS
Maximum Door Size (mm) 1200w x 2400h 1200w x 2400h 2400w x 2400h 2400w x 2400h
Maximum Door Weight 3 Hinges 67.5kg 4 Hinges 90kg 3 Hinges 67.5kg 4 Hinges 90kg 3 Hinges 67.5kg 4 Hinges 90kg 3 Hinges 67.5kg 4 Hinges 90kg
Single Open-In Single Open-Out Double Open-In Double Open-Out
GLAZING
Glazing Thickness 24mm-40mm 24mm-40mm 24mm-40mm 24mm-40mm
SYSTEM FEATURES
Single Colour
Dual Colour
Textured Finish
Anodised Finish
Thermally Broken
Sightline (Head) 129.5mm 129.5mm 129.5mm 129.5mm
Sightline (Cill) 111mm 111mm 111mm 111mm
Sightline (Jamb) 129.5mm 129.5mm 129.5mm 129.5mm
Sightline (Meeting Stile) n/a n/a 209.5mm 209.5mm
Panel Door
Multi-Point Locking
Barrel Hinges

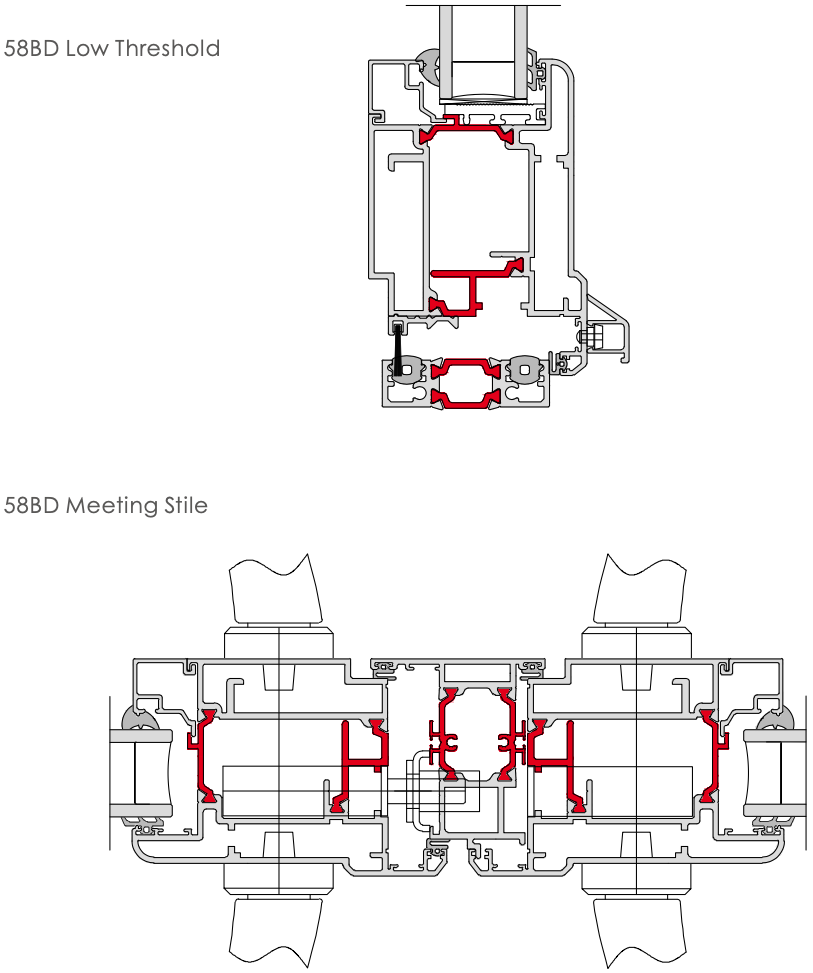

Low Threshold
APPLICATIONS
New Build
Refurbishment

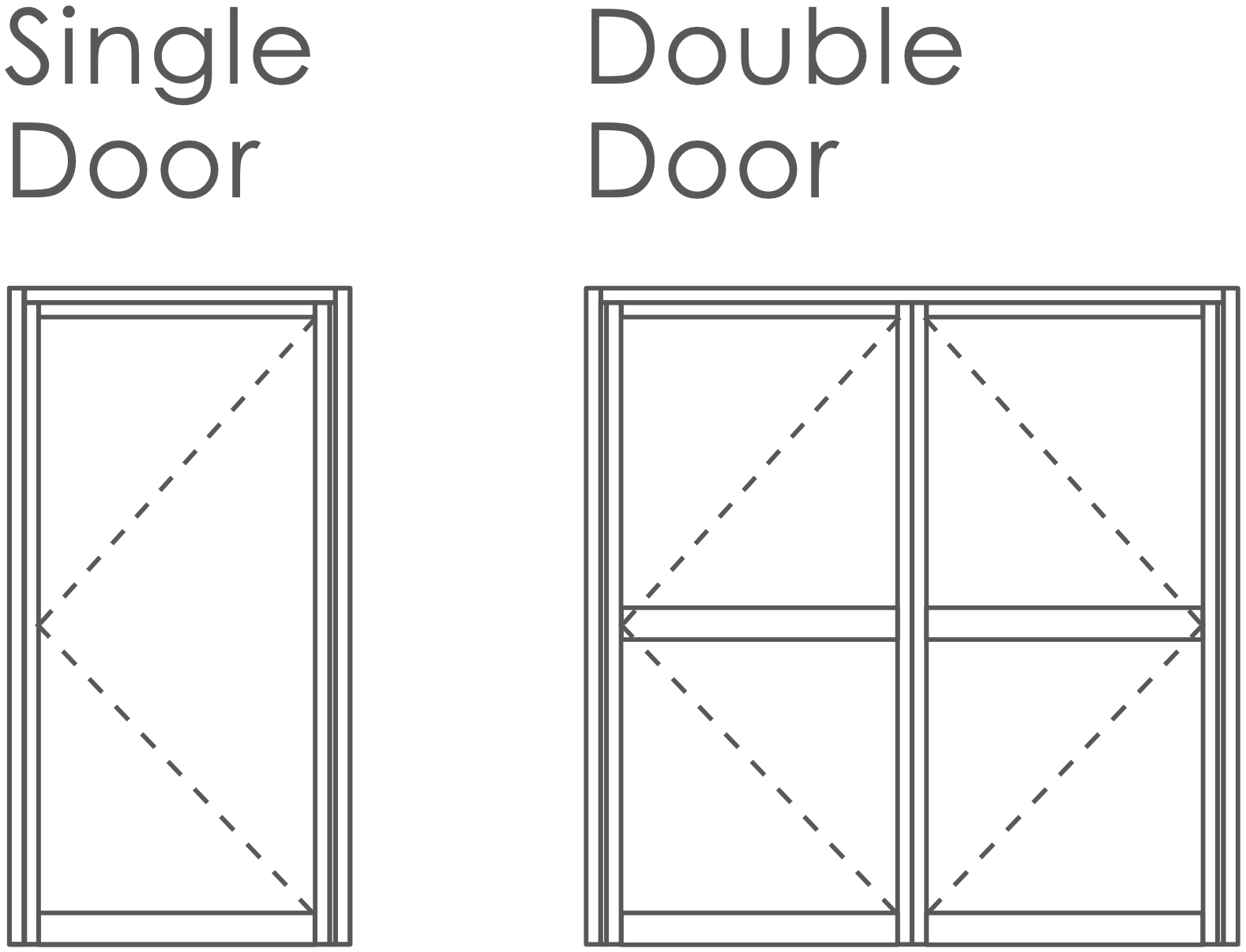

CONFIGURATIONS:
