BSC94 Lift and Slide Door System

This premium multi-configuration Lift and Slide system offers excellent performance, with thermal U-Values of 1.5W/m²K (triple glazed) and sightlines of as little as 45mm. The system’s Lift and Slide technology delivers effortless operation and can support panel weights of up to 400kg, resulting in greater design flexibility and heightened operator comfort.

The BSC94 is manufactured to the highest UK standards and is available in mono, dual and triple track rail options, as well as a range of styles, colours and anodised finishes.

Design features:
  • Accepts 20 – 31mm double glazing
  • Max 400kg panel weight
Options:
  • Slimmer sightline of 45mm available
  • Multiple sliding configurations
  • Mono, dual or triple rail options
  • Range of hardware and security features
  • Available in single or dual colour polyester powder coating, texture and anodised finishes
BSC94 BSC94 Slim
PERFORMANCE AND ACCREDITATIONS
U-Value (Double Glazing) (Ug = 1.0 W/m²K) (mono rail) 1.7 W/m²K x
U-Value (Triple Glazing) (Ug = 0.7 W/m²K) (mono rail) 1.5 W/m²K x
U-Value (Double Glazing) (Ug = 1.0 W/m²K) (dual Rail) 1.9 W/m²K 1.9 W/m²K
U-Value (Triple Glazing) (Ug = 0.7 W/m²K) (dual Rail) 1.7 W/m²K 1.6 W/m²K
BRE Green Guide Rating C Rated C Rated
Air Permeability Class 4 (600 Pa) Class 4 (600 Pa)
Water Tightness Class 7a (300 Pa) Class 7a (300 Pa)
Wind Resistance C3 (1200 Pa) C3 (1200 Pa)
Acoustic Performance - -
SYSTEM
Depth 94mm-155mm 94mm-155mm
BSC94 BSC94 Slim
CONFIGURATIONS
Opening Lift & Slide Lift & Slide
Mono Rail x
Dual Rail
Tri Rail x
SIZE AND WEIGHT LIMITS
Max Frame Height 3000mm 3000mm
Max Vent Width 2000mm 2000mm
Max Vent Weight 400kg 400kg
GLAZING
Glazing Options Internal Internal
Glazing Thickness 20mm-31mm 20mm-31mm
BSC94 BSC94 Slim
SYSTEM FEATURES
Single Colour
Dual Colour
Textured Finish
Anodised Finish
Multi-Point Locking
Sightlines (Interlock) 100mm 45mm
Sightlines (Cill) 130.5mm 130.5mm
Sightlines (Head) 130.5mm 130.5mm
Sightlines (Jamb) 130.5mm 130.5mm

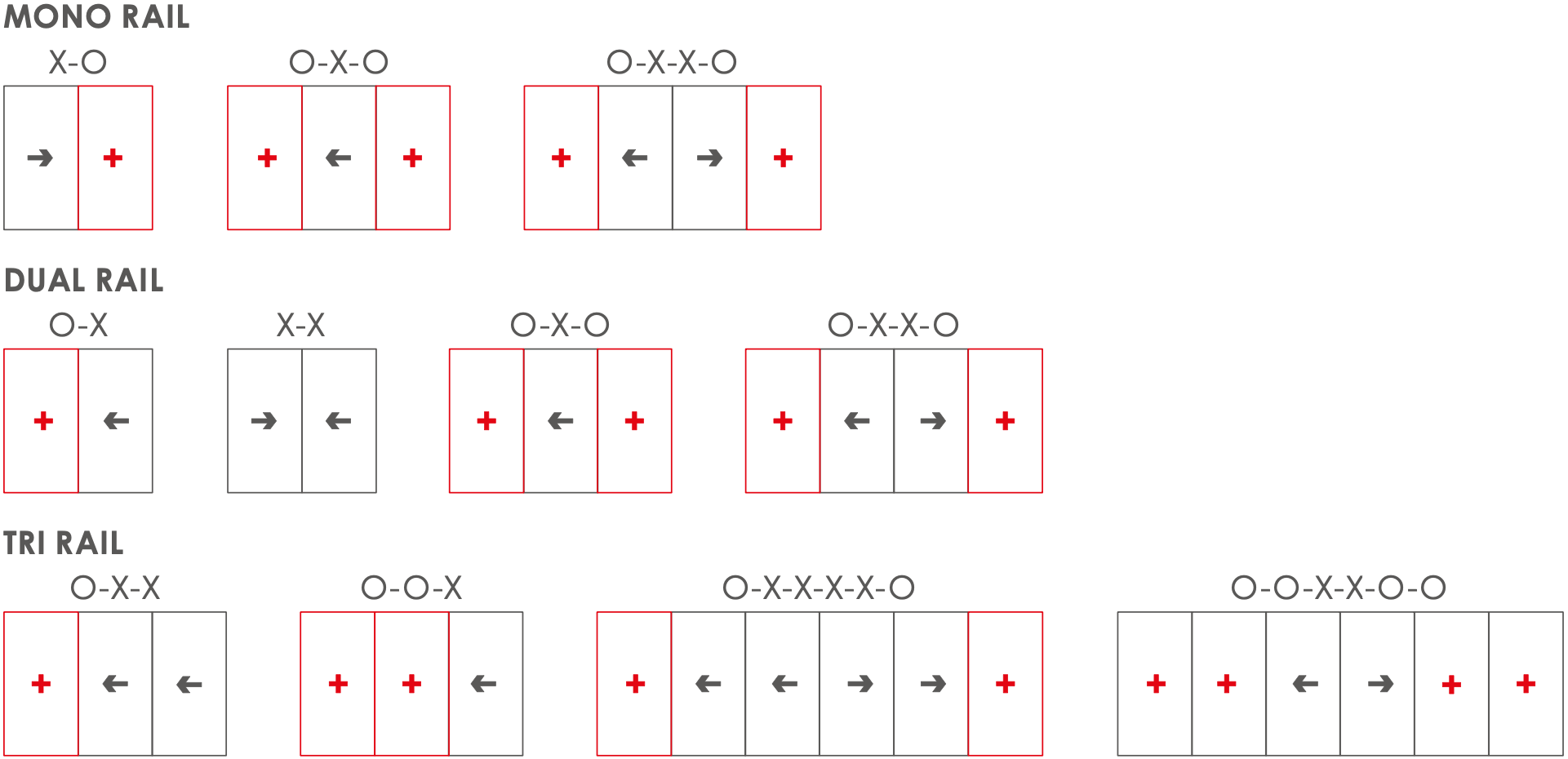

CONFIGURATIONS:

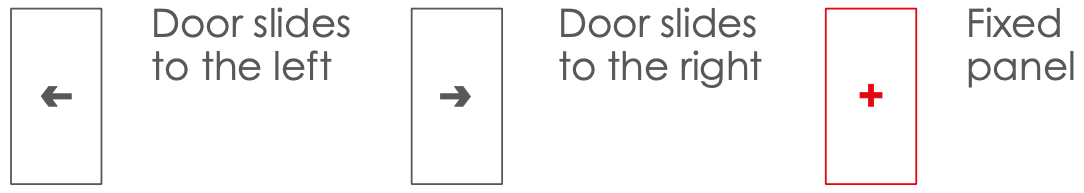

KEY:
