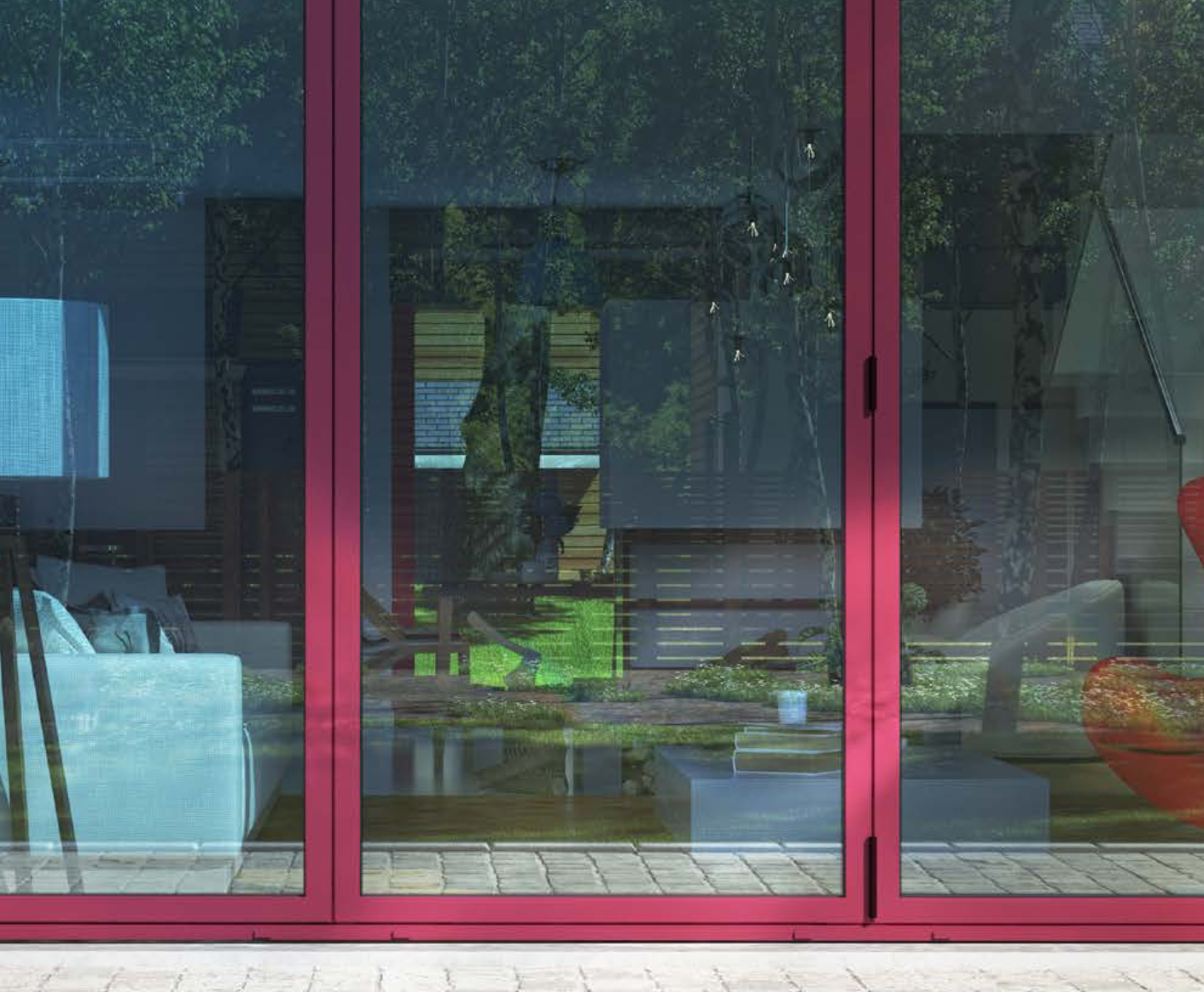

F82 Bifolding Door

The F82 Folding Door System puts high performance and security front of mind, offering a wide range of configurations to support the bespoke requirements of your project. Multiple doors can be combined with open-in or open-out options in a variety of styles to create a wide expanse of opening.

The system is fully PAS 24 and Secured By Design-accredited, making it Document Q compliant. The full frame and cill have been designed to create a slimmer, symmetrical frame of 97mm combined with a reduced interlock sightline of 122mm, providing larger glazing areas without compromising performance. Thermal U-Values of 1.0W/m²K (triple glazed) assist with meeting the latest energy efficiency requirements.

Other key design features include a flush pop-out handle and contemporary traffic door handles. The system also offers heavy-duty compact slim stainless-steel rollers as standard, allowing for a smoother movement when opening and closing.

Innovation, not imitation

The Luminia F82 bi-fold door has been designed with style and performance front of mind. It cleverly combines the intimacy of inside spaces with the freedom of outside living, without ever compromising on performance safety or security. And like all AluK aluminium façade systems, it continues to push the industry forward by delivering unrivalled innovation and installation simplicity.

For starters, it delivers an industry-best 1.3 U-value thermal performance for double glazed units and 0.9 U-value for triple glazed. Larger glazing panels, faster fabrication and installation thanks to fewer parts and profiles. While panel size options of up to 3000mm* provide complete project flexibility.

Design features:
  • Unique flush pop-out handle for ease of operation, removing the need for additional unsightly handles

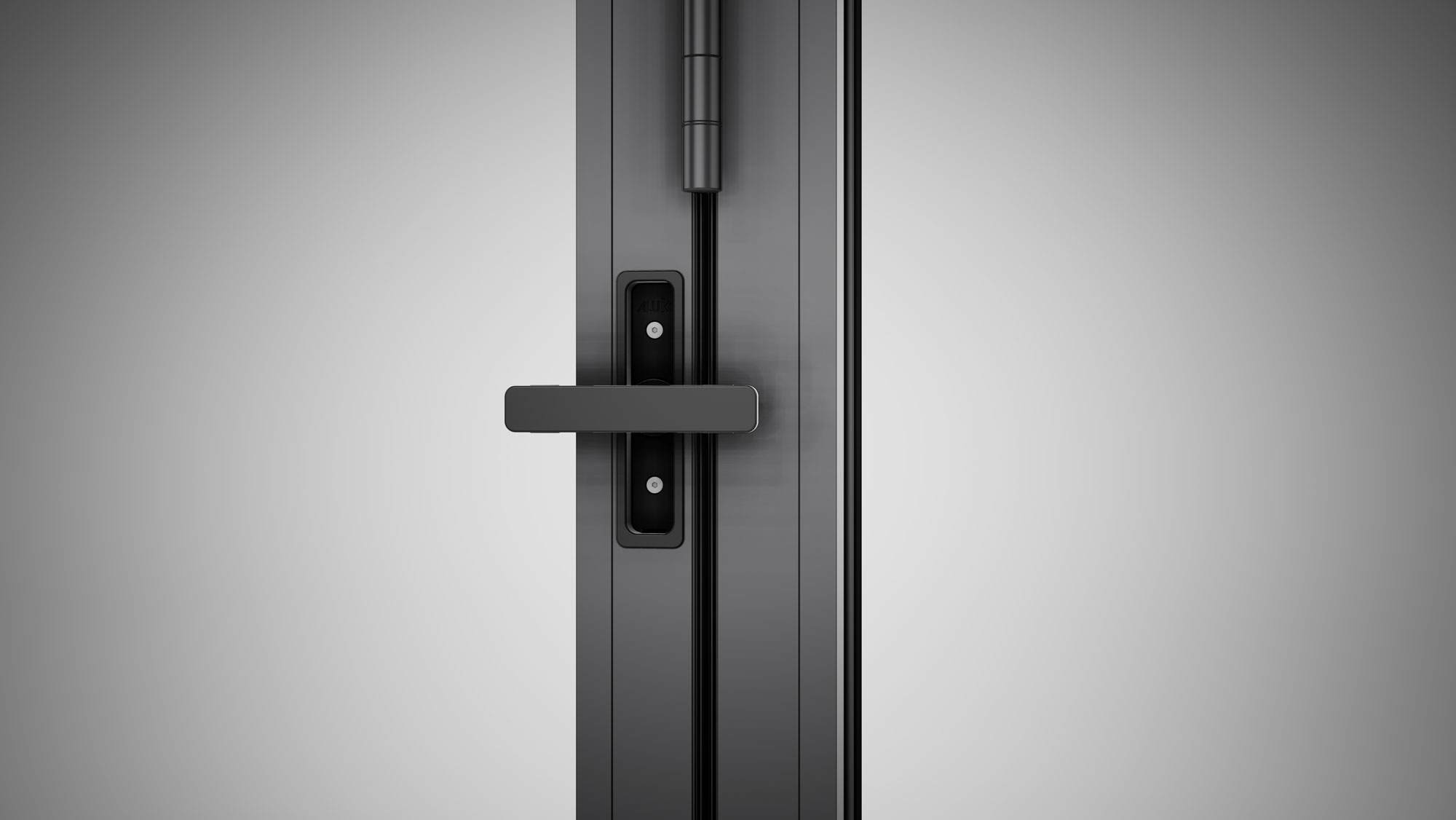

  • Unique traffic door handle

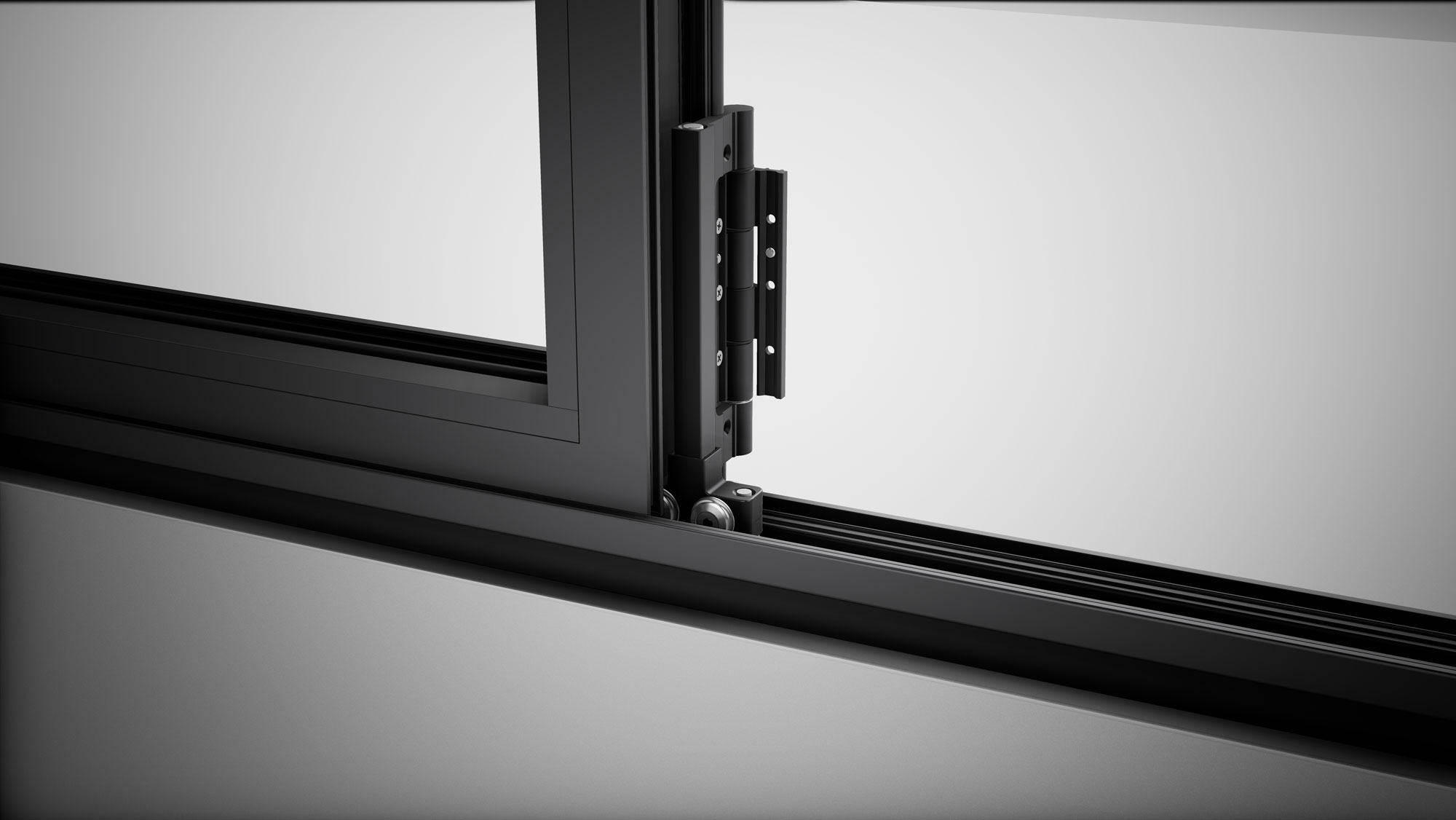

  • Heavy-duty stainless steel compact rollers as standard
  • Full symmetrical frame sightline of 97mm
  • 122mm slimline interlock
  • Low threshold
  • Larger glazing area
Options:
  • Square bead
  • Glazing sizing range of 28mm–44mm
  • Available in a range of opening configurations
  • Available in single or dual colour polyester powder coating, texture and anodised finishes
  • All configurations available open-in and open-out

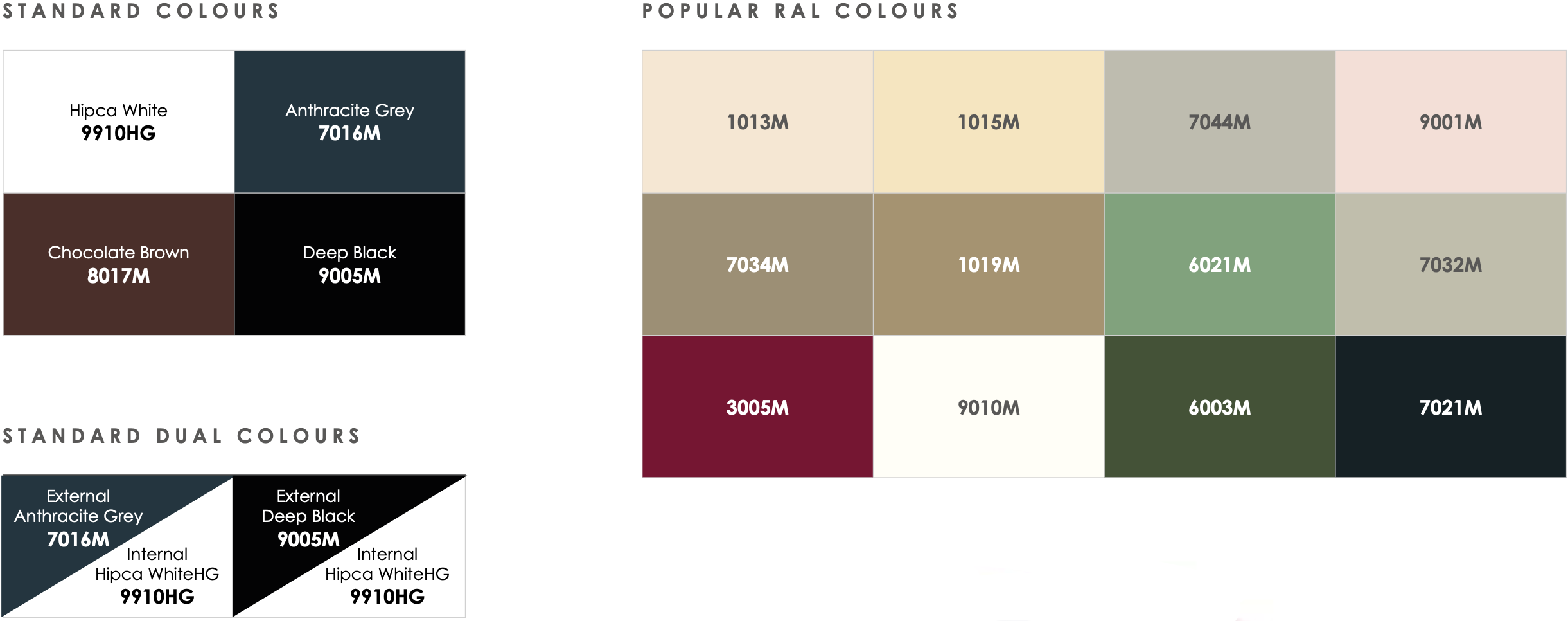

Colourful choices

If there’s one thing architects, specifiers and homeowners all have in common, it’s the desire for choice. That’s why we offer an extensive range of colours and finishes to bring any project vibrantly alive.

It offers customers the freedom to let their imagination fly while providing installers with the quick turnaround and clear delivery schedules they demand.

So whether it’s a standard single or dual colour, or one of the many vibrant RAL Colours available, the tone is set for service excellence.

PERFORMANCE AND ACCREDITATIONS
U-Value (Double Glazing) (Ug: 1.0 W/m²K) 1.3 W/m²K
U-Value (Triple Glazing) (Ug: 0.7 W/m²K) 1.0 W/m²K
Air Permeability (Standard Threshold) Class 3 (600 Pa)
Water Tightness (Standard Threshold) Class 5a (200 Pa)
Wind Resistance Class 4A (1600 Pa)
Security PAS 24 & SBD
SYSTEM
Depth 82mm
Configuration
Opening Open-In & Open-Out
SIZE AND WEIGHT LIMITS
Max Leaf Height 2600mm
Max Leaf Width 1200mm
Max Vent Weight 150kg
GLAZING
Glazing Options Internal
Glazing Thickness 20mm-31mm
SYSTEM FEATURES
Single Colour
Dual Colour
Textured Finish
Anodised Finish
Multi-Point Locking

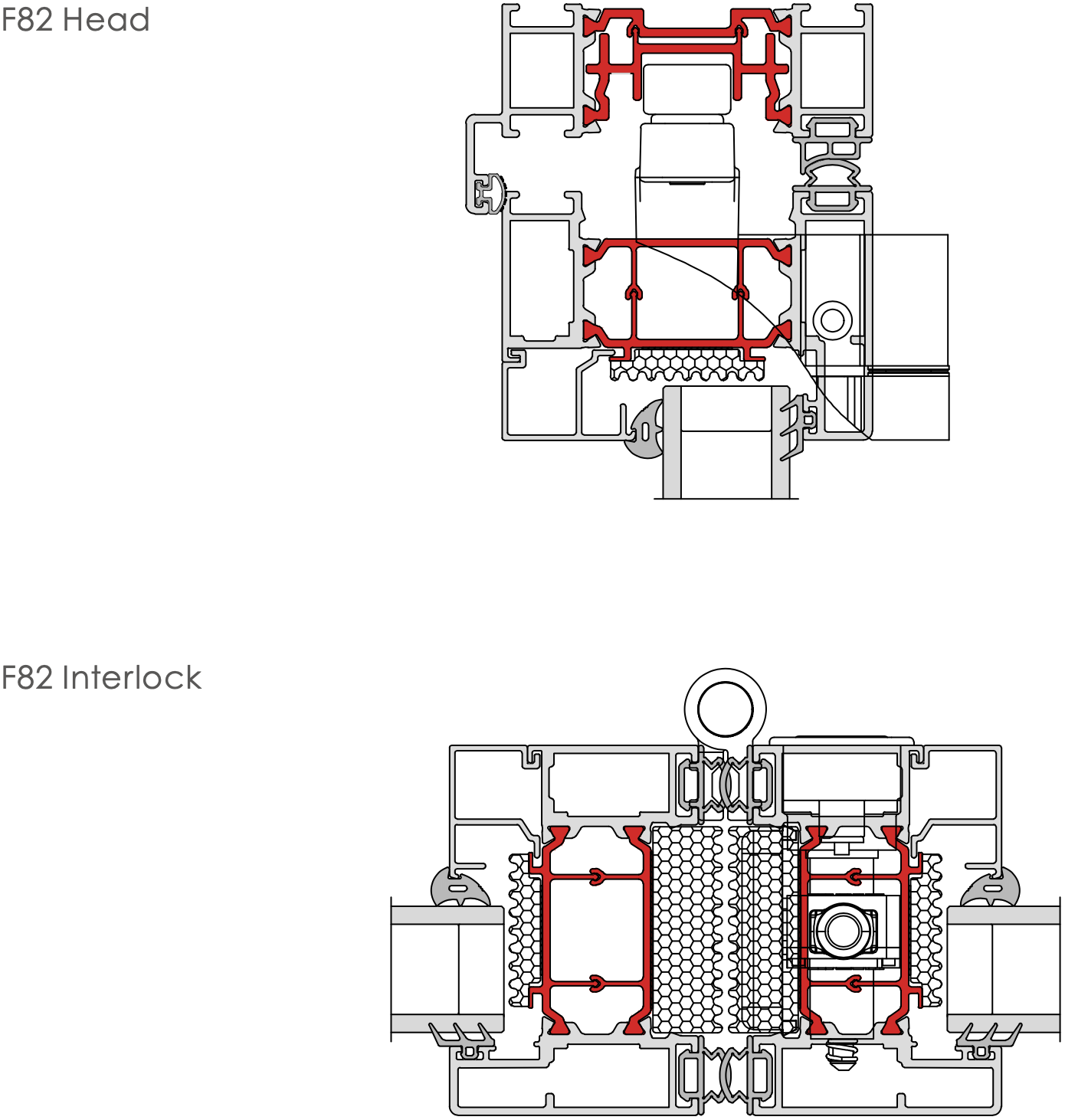

Sightlines (Head) 97mm
Sightlines (Cill) 97mm

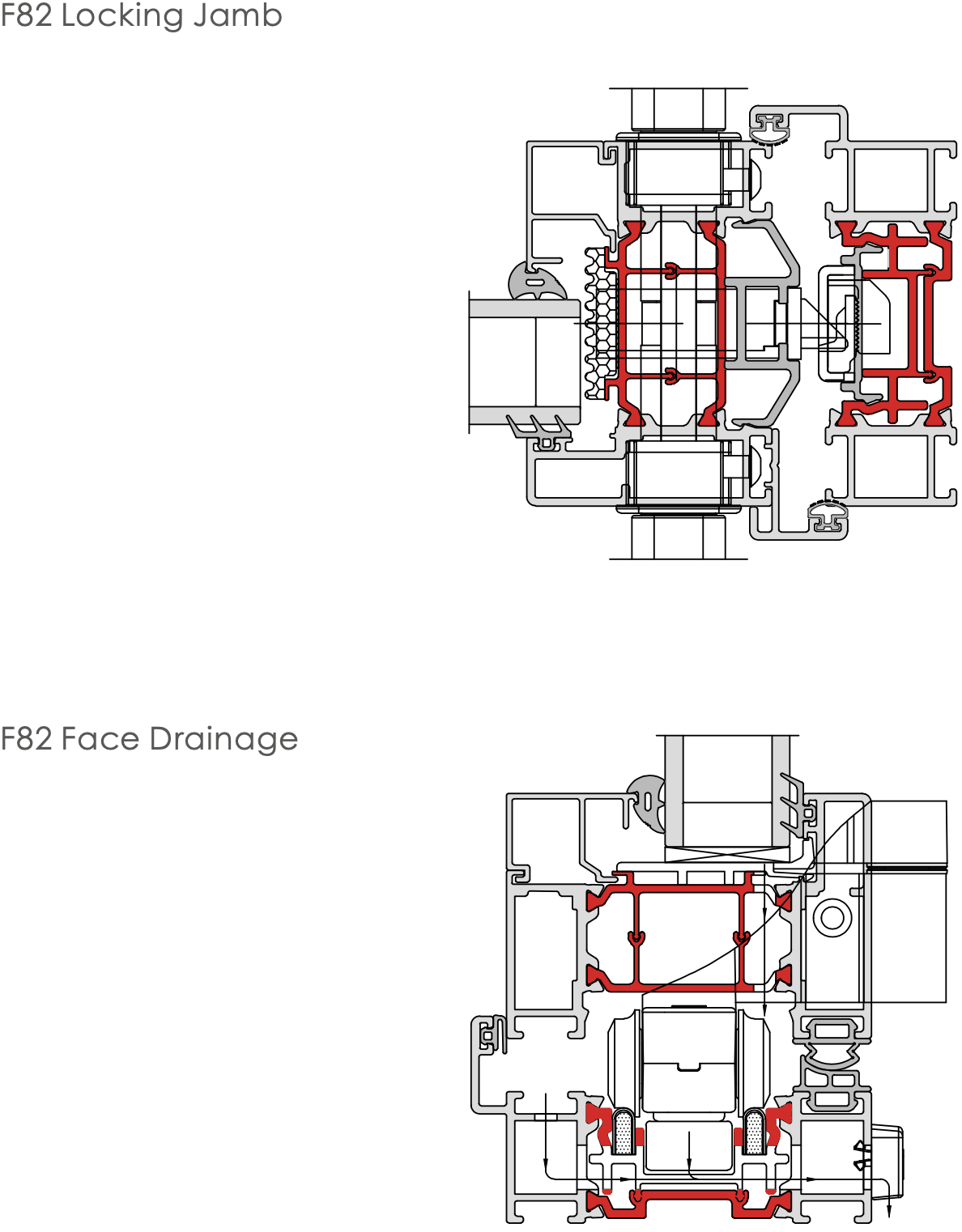

Sightlines (Jamb) 97mm
Sightlines (Meeting Stile) 122mm

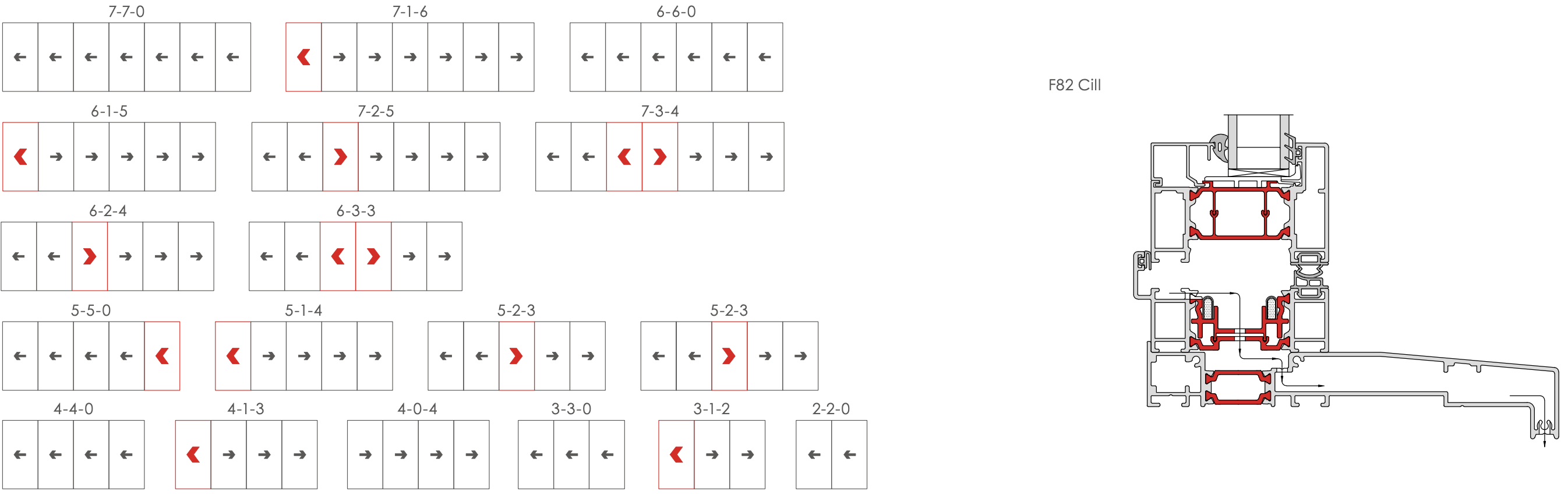

CONFIGURATIONS:

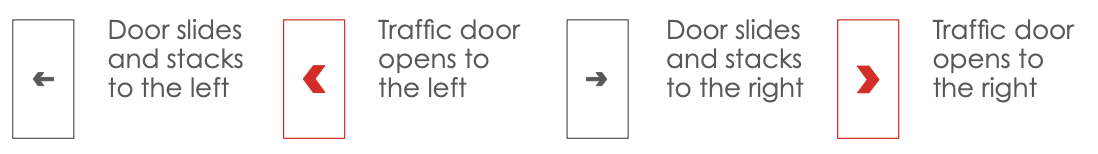

KEY:

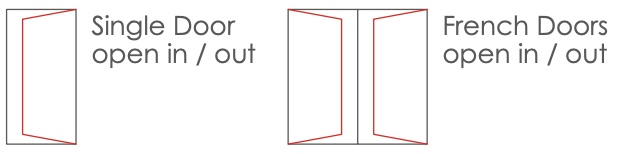

OTHER OPTIONS AVAILABLE:
